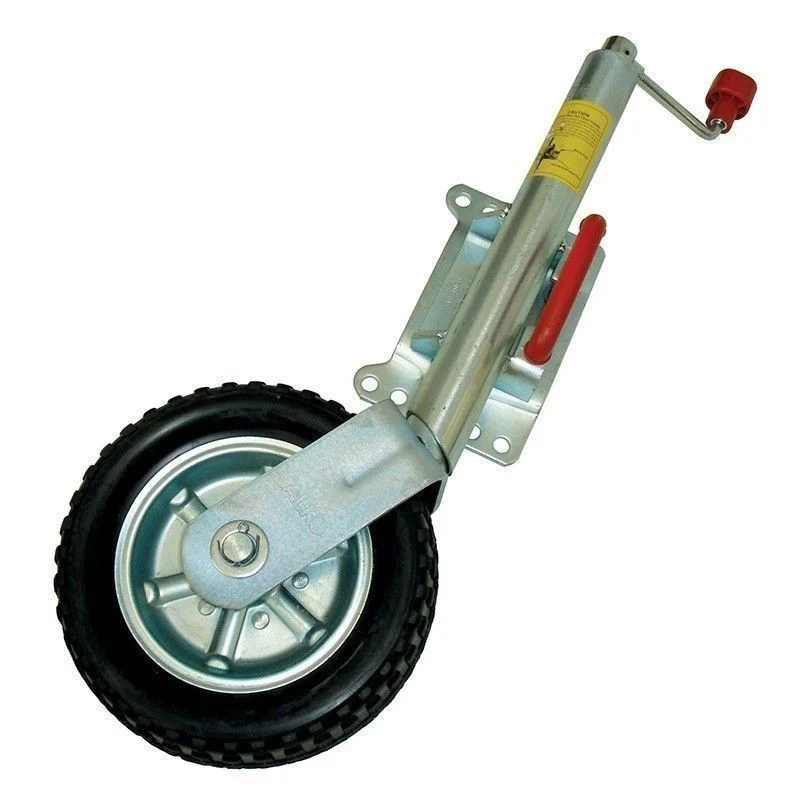

ALKO Premium 10" 250mm Heavy Duty Large Swivel Bracket Jockey Wheel 623660XP3 / 450-00642
|
❖Features
Load capacity up to 400 kg

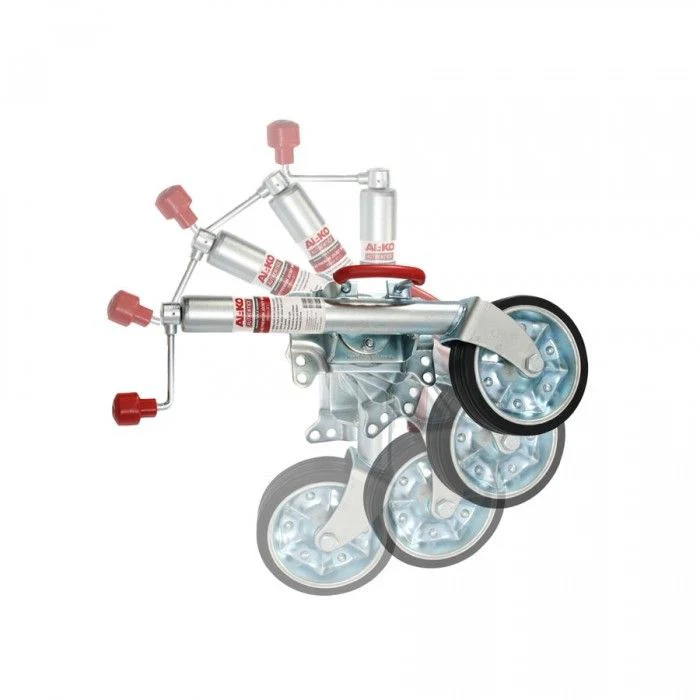

Swing up storage
Runs over uneven ground
Easy to manoeuvre
Smooth, reliable crank
Removable wheel (for additional security and to replace worn wheels)
AL-KO Premium product line jockey wheels*: Corrosion protection: Zinc Plated, Thrust bearing, removable crank and wheel, standard & wide clamp options.
|
❖Specifications
Brand | ALKO
Model | 623660XP3
Wheel Size (D) | 200mm dia
Mounting | Swivel
Static Capacity | 400kg
Tube O.D. | 48mm
Closed H1 | 630mm
Open H2 | 880mm
Closed G1 | 320mm
Open G2 | 570mm
U1, U2, U3 | 63, 113, 88mm
W | 185mm
Weight | 11kg
Shipping Dimensions(mm) | 720 x 150 x 270
Warranty | 1 year
Product Information
Product Information
Shipping & Returns
Shipping & Returns
ALKO Premium 10" 250mm Heavy Duty Large Swivel Bracket Jockey Wheel 623660XP3 / 450-00642
ALKO Premium 10" 250mm Heavy Duty Large Swivel Bracket Jockey Wheel 623660XP3 / 450-00642
|
❖Features
Load capacity up to 400 kg
Swing up storage
Runs over uneven ground
Easy to manoeuvre
Smooth, reliable crank
Removable wheel (for additional security and to replace worn wheels)
AL-KO Premium product line jockey wheels*: Corrosion protection: Zinc Plated, Thrust bearing, removable crank and wheel, standard & wide clamp options.
|
❖Specifications
Brand | ALKO
Model | 623660XP3
Wheel Size (D) | 200mm dia
Mounting | Swivel
Static Capacity | 400kg
Tube O.D. | 48mm
Closed H1 | 630mm
Open H2 | 880mm
Closed G1 | 320mm
Open G2 | 570mm
U1, U2, U3 | 63, 113, 88mm
W | 185mm
Weight | 11kg
Shipping Dimensions(mm) | 720 x 150 x 270
Warranty | 1 year
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
|
❖Features
Load capacity up to 400 kg
Swing up storage
Runs over uneven ground
Easy to manoeuvre
Smooth, reliable crank
Removable wheel (for additional security and to replace worn wheels)
AL-KO Premium product line jockey wheels*: Corrosion protection: Zinc Plated, Thrust bearing, removable crank and wheel, standard & wide clamp options.
|
❖Specifications
Brand | ALKO
Model | 623660XP3
Wheel Size (D) | 200mm dia
Mounting | Swivel
Static Capacity | 400kg
Tube O.D. | 48mm
Closed H1 | 630mm
Open H2 | 880mm
Closed G1 | 320mm
Open G2 | 570mm
U1, U2, U3 | 63, 113, 88mm
W | 185mm
Weight | 11kg
Shipping Dimensions(mm) | 720 x 150 x 270
Warranty | 1 year
