Fusion SM-F65OEM SM Series 6.5" 100W Classic Shallow Mount Marine Speaker (Pair)
|
❖Features
OPTIMISED QUALITY AUDIO REPRODUCTION
The Fusion SM Series shallow mount speakers are designed for installations where mounting depth is limited, without compromising on sound quality and performance.
The unique shallow mount design features a mounting depth of only 0.94″ (24 mm).
A high-end acoustic fabric finish with rounded edges and contours adds style to your boat.
The tuned, sealed enclosure provides quality audio reproduction and protects the speaker components.
The mounting diameter clearance of 5.12″ (130 mm) allows it to be retrofittable with most 6.50″ speaker cutouts.
Features
DESIGNED AND ENGINEERED FOR THE MARINE ENVIRONMENT - The SM Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog and UV.
QUALITY MATERIALS AND ACOUSTIC ENGINEERING - The SM Series speakers incorporate high-quality materials and marine-specific design elements, ensuring they look and sound great on the water.
MULTIPLE MOUNTING ACCESSORIES - Three accessory mounting spacers are available (each sold separately), allowing you to mount your SM Series speakers on board with versatility and ease.
TUNED, SEALED ENCLOSURE - The enclosure allows for installation where mounting depth is limited, without compromising sound quality. The enclosure also protects the components from damage without needing rear speaker cups, simplifying installation.
OPTIMISED SPEAKER DRIVER - An optimised 3″ speaker driver is incorporated into the enclosure, with all acoustic parameters precisely calculated for quality audio reproduction wherever the speaker is installed.
IN THE BOX
One pair of speakers (based on what you select)

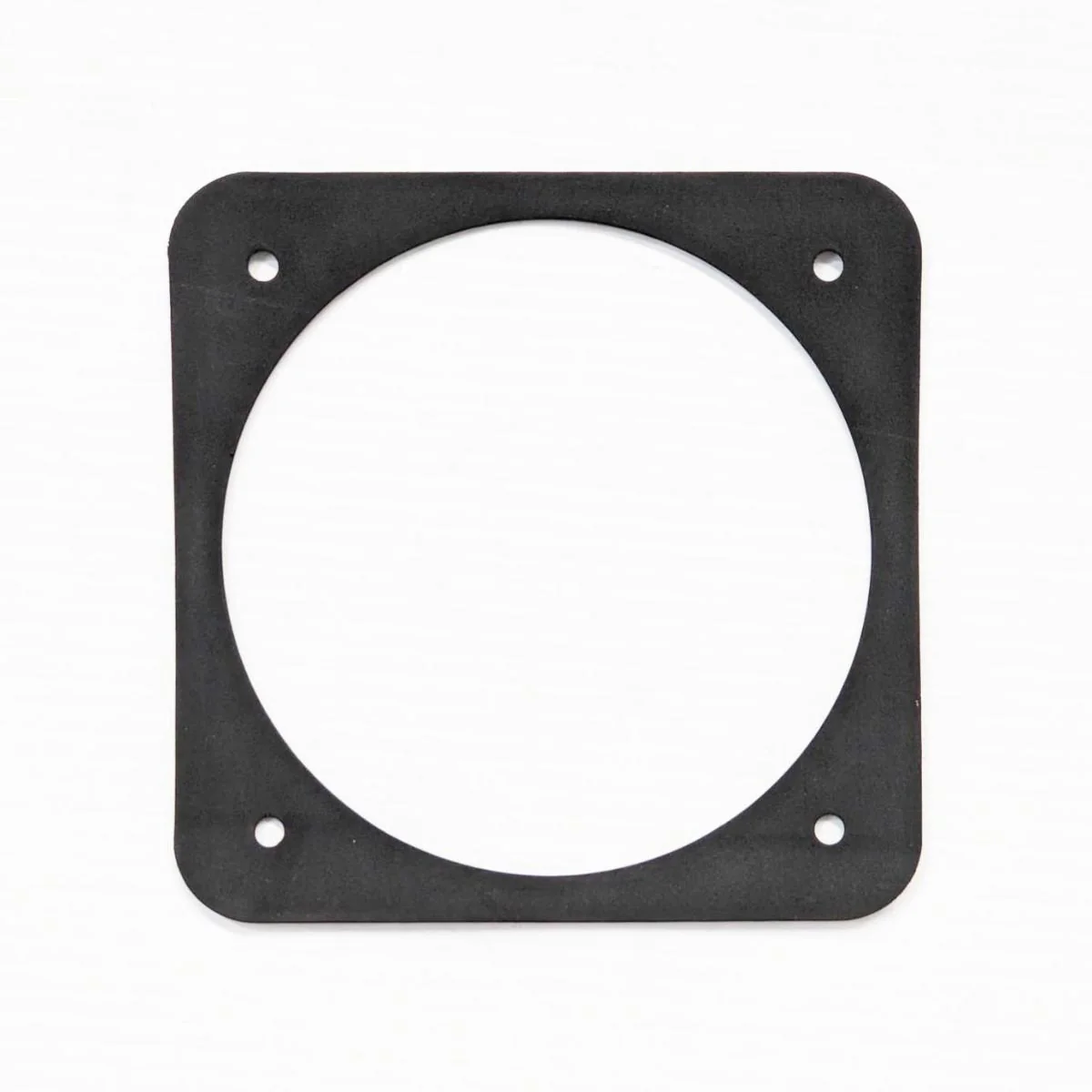

One pair of seals
Notes: Speaker wire and Grilles not included.
Installation Recommendation
The SM Series speakers are designed for use directly with a Fusion stereo unit. Use of the speakers with an external amplifier is not recommended.
|
❖Specifications
Brand | Fusion
Model | SM-F65OEM
General
Physical dimensions (Diameter x Depth) | 6.10″ x 1.81″ (155 x 46 mm)
Water and dust rating | IP65
Configuration | Full Range
Speaker size | 6.50″
Peak power (Watts) | 100 W
Sensitivity (1 W / 1 m) | 84 dB
Frequency response | 150 Hz-20 kHz
Nominal impedance | 4 ohms
Operating temperature range | 32° to 122° F (0° to 50° C)
Voice coil diameter | 20 mm
Cone material | Polypropylene cone with rubber surround
Compass-safe distance | 96.50″ (245 cm)
Warranty | 1 year
Mounting dimensions
Mounting diameter clearance | 5.12″ (130 mm)
Mounting depth clearance | 0.94″ (24 mm)
