❖Features

---

Features / Specifications

• Low Profile Recessed Mount
• Surface Bases Available
• ADR Australian Road Approved
• IP67 Rated
• Voltage Range 12 Volt or 12-24 Volt

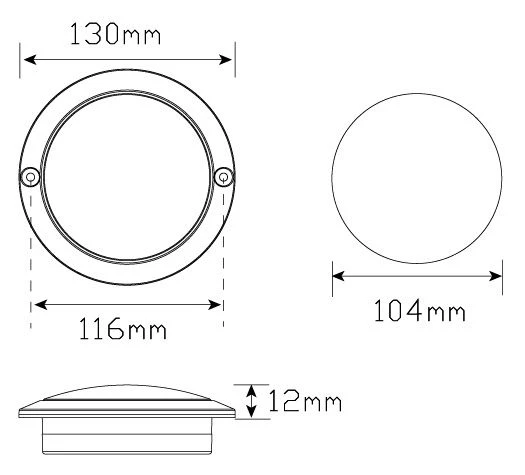

• 130mm Round x 12mm
• 5 Year Warranty

Fitting Instructions

Fit into cutout (cutout 104mm round) using stick on gasket between lamp and fitting surface, run wires at back. Please refer to ADR 13/00 for mounting instructions.

|

❖Specifications

| |
---|---|---
Coloured Lens
102RM | 12-24V, Blister
. |
LED Qty | 21
Cable | 36cm Spade Terminals
.
Draw | Stop | Tail
@13.8V | 0.31A | 0.04A
@28V | 0.19A | 0.04A
.
Approvals | Function | Category | CRN
ADR | Stop/Tail | 49/00 | 42963
CTA | Stop/Tail | 49/00 | CTA-042963
